Author Topic: Belkin F5D6230-3 Router  (Read 25344 times)
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« on: September 28, 2007, 02:30:43 AM »

I have this old Belkin F5D6230-3 router laying here, and decided it might be worth mucking around with.  I don't think I'd ever be able to put DD-WRT or OpenWRT on it, but it seems like it might be viable for just my own tinkering.  And who knows, I might get something worthwhile out of it one day!  The firmware that's in it is pretty much garbage from what I can tell, and we've never used this router in an actual network for more than like a day because of such.  So anyhoo, I figured I'd just make a topic here and post the info I have as I get it, for anyone else that might stumble onto this one day that might find it useful.

From what I've deduced, it's very very similar to the Linksys BEFW11S4.  Most of the parts are the same or similar, the boards are just different.  But the BEFW11S4 is labeled as not being compatible with OpenWRT, which leaves me to believe the Belkin here never would be either, since they're so similar.

In the OpenWRT hardware compatibility list, the D-Link DI-614+ also sounds like it might have similar hardware, but I haven't looked into it much yet.

Here's some of the components from the Belkin that I've looked up:

S3C4510B01-QER0 = ARM7 cpu (and a 50mhz oscillator nearby)
EM638325TS-6 = 8MB SDRAM
TE28F800 = 1MB Flash (probably explains the biggest reason OpenWRT isn't supported)
88E6050-RJJ = 10/100 Ethernet Switch With Internal RAM
LF8731 = 10 BASE-T/100 BAST-TX Transformer Module
RTL8019AS = 10Mbit Full Duplex Ethernet controller with SRAM
91.EP213.002 217CP10746 - Unknown brand PCMCIA wifi card (802.11B) with dual-antennas hard-wired

If you check out this site (translated from French), you can see what I meant about many of the components being the same or similar with the BEFW11S4.  I'll take some pictures of the pcb in the Belkin soon.

The Belkin has a couple of headers, one of which actually has the header pins installed.  I believe this one is a serial port, but they lead to a place on the board where no chip is installed (likely a level converter, since the S3C4510B has built-in UARTS).  Yet oddly, the other header is lacking the pins, and is very clearly a JTAG connector.  There's even a couple of locations down along the bottom of the board where apparently a parallel connector and serial connector can be mounted on the board, and some spots where other chips aren't installed, so maybe they had a few different models using the same board with various features.  I'll have to look into it more.

Anyhoo, the JTAG appears to be the standard 14-pin ARM pinout:

1 - Vddh (+3.3v)2 - Vss (ground)
3 - nTRST4 - Vss (ground)
5 - TDI6 - Vss (ground)
7 - TMS8 - Vss (ground)
9 - TCK10 - Vss (ground)
11 - TDO12 - nRESET (optional)
13 - Vddh (+3.3v)14 - Vss (ground)

I tested the voltage of the Vddh's and they are in fact 3.3v.  And all the grounds are definately ground, since it can be confirmed visually right away (which is what made me suspect JTAG in the first place).  Though due to the voltage, I figure this means one needs some kind of buffered JTAG cable in order to talk to it with a parallel port, unfortunately.

I think the OS is VxWorks, because there's a Wind River Systems copyright string in the firmware for this model (that you can get from Belkin's site).  The firmware image itself must be compressed, because there aren't really many other strings to be found in it.  There also appears to be a header at the top of some sort (preventing you from uploading other firmwares via the web interface), but it's not the same as the Belkin Extended Header Format (see this white paper for info on that).  It's somewhat similar though, at least in a couple spots, it seems.  The first four bytes are some unknown stuff, but the next four seem to be the size of the image itself (least-significant byte first).  If we follow the extended format, the next four are the CRC.  Following that is the zero-terminated string "WirelessBelkin" (which differs from the extended format's structure).

Now how large the header actually is, I don't know.  Possibly 27 bytes, like the extended one.  From looking at the bytes in the file, this is quite possibly true, since following that string is a series of bytes with the value 0xCC.  As for the size of the image found earlier in the header, if we assume the image starts at 0x1B, then that leaves us some extra bytes at the end.  In the extended format, this is for an NVRAM section.  But I couldn't find anything even close to resembling the NVRAM header, so I really don't know at this point what's what.  It doesn't help that it's compressed.  I saw someone mention somewhere that one particular firmware was in ARJ, but I don't even remember what that was for.  But at least it's a start, perhaps.

I tried using a TFTP client to put a firmware update on it, but nothing happens, so I figure that method is out.  We're likely stuck with either the updater in the web interface, or the JTAG connector.

I think that's about all I know for the time being!
« Last Edit: September 28, 2007, 02:44:15 AM by FyberOptic » Logged
Altzan
Website Designer
Sr. Member
****
Posts: 357



WWW
« Reply #1 on: September 28, 2007, 07:22:36 AM »

Holy cow, I didn't understand half of that.
Logged

TORTQUATO TASSO is the best name ever.


RANDOM WEBSITE
SEE MY POKEMANS CARD
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #2 on: September 28, 2007, 12:51:09 PM »

Holy cow, I didn't understand half of that.

It's okay, I made it all up.


Here's more:

The header doesn't seem to be 27 bytes after all.  Or if it is, there's something else after it.  After disassembling a bunch of the code, it seems it actually starts at 0x50 (80 decimal).  This is also confirmed by the fact that in the firmware image I have, which is 708384 bytes large, the bytes from 0x0004-0x0007 in the header (the image size value) equals 708304.  The difference between those sizes of course being 80, which cooberates my assumption that the actual image starts after the first 80 bytes.

Actually, here's the header, which I prolly shoulda pasted in the first post:

Code:
00000000h: 02 00 00 00 D0 CE 0A 00 7F 5E B1 05 57 69 72 65 ; ....ΠΞ..^±.Wire
00000010h: 6C 65 73 73 42 65 6C 6B 69 6E 00 CC CC CC CC CC ; lessBelkin.ΜΜΜΜΜ
00000020h: CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC ; ΜΜΜΜΜΜΜΜΜΜΜΜΜΜΜΜ
00000030h: CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC ; ΜΜΜΜΜΜΜΜΜΜΜΜΜΜΜΜ
00000040h: CC CC CC CC CC CC CC CC CC CC CC CC EC 2F 00 00 ; ΜΜΜΜΜΜΜΜΜΜΜΜμ/..

As for that ARJ compression thing I mentioned, that's probably totally wrong.  More poking on the web reveals that VxWorks likely uses zlib.  I scanned the binary for the normal gzip header, and tried truncating the file at each of these locations to see if it'd open, but nope.  I then found out that gzip and zlib formats are a bit different: zlib doesn't use the same header, it uses only two bytes, which are dynamic, making it much harder to just scan a file for the start of a compressed area.  zlib "archives" also end in an Adler-32 checksum.  Here's the zlib RFC for reference.
Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #3 on: September 29, 2007, 02:36:47 PM »

I wrote a Perl script trying to see if I could match the assumed CRC value in the header (bytes 8-11) to the image data below, but nothing so far.  I tried incrementing the start position in the firmware (even starting at byte 0 just in case), each time running it all through CRC8/CRC16/CRC32/CRCCCITT, but nothing matched.  I tried reversing the byte order of the possible CRC, and even inverting the bits like the Belkin Extended Header format suggests.  But nope.  So I'm currently at a loss on that.

I did figure out for sure that the actual image contains zlib compression structures, from the find-zlib script I found on the internet.  I was already pretty sure anyway from what I read about VxWorks, and also from some of the strings in the data.  But finding the compressed kernel inside the image is another story.  Since they're using a modified zlib, they might not even put an adler32 or any crc-like verifications at the end of the compressed kernel image, meaning I might never know if I got it out unless I just happened to notice strings in the result.  So at this point I have no idea how to get the compressed kernel out short of disassembling all the ARM code in the firmware that inflates it at router startup.  But the problem there is that I don't know where this code begins executing.  There might be some form of boot loader in the router that offsets where this firmware sits.  Who knows.

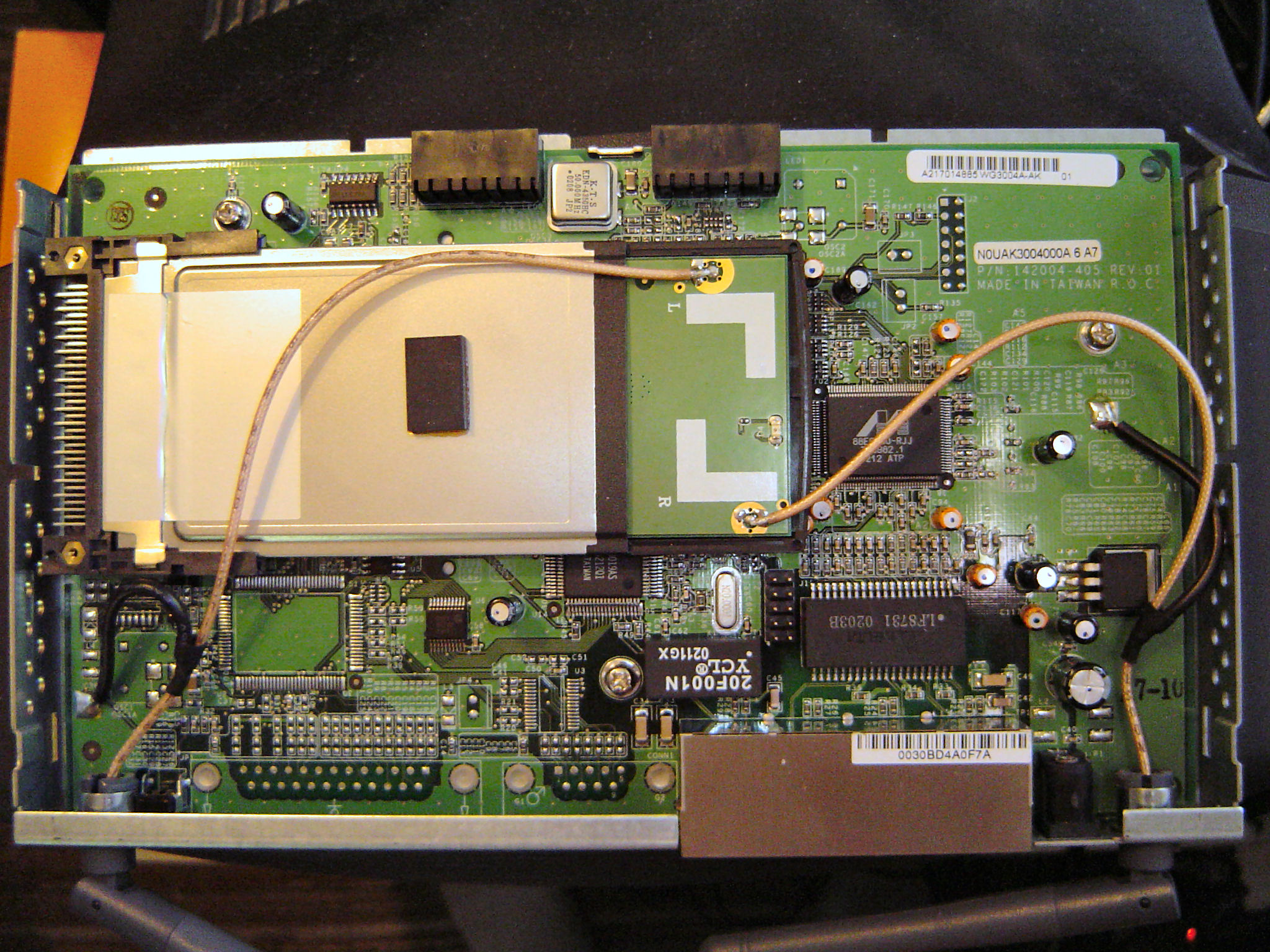

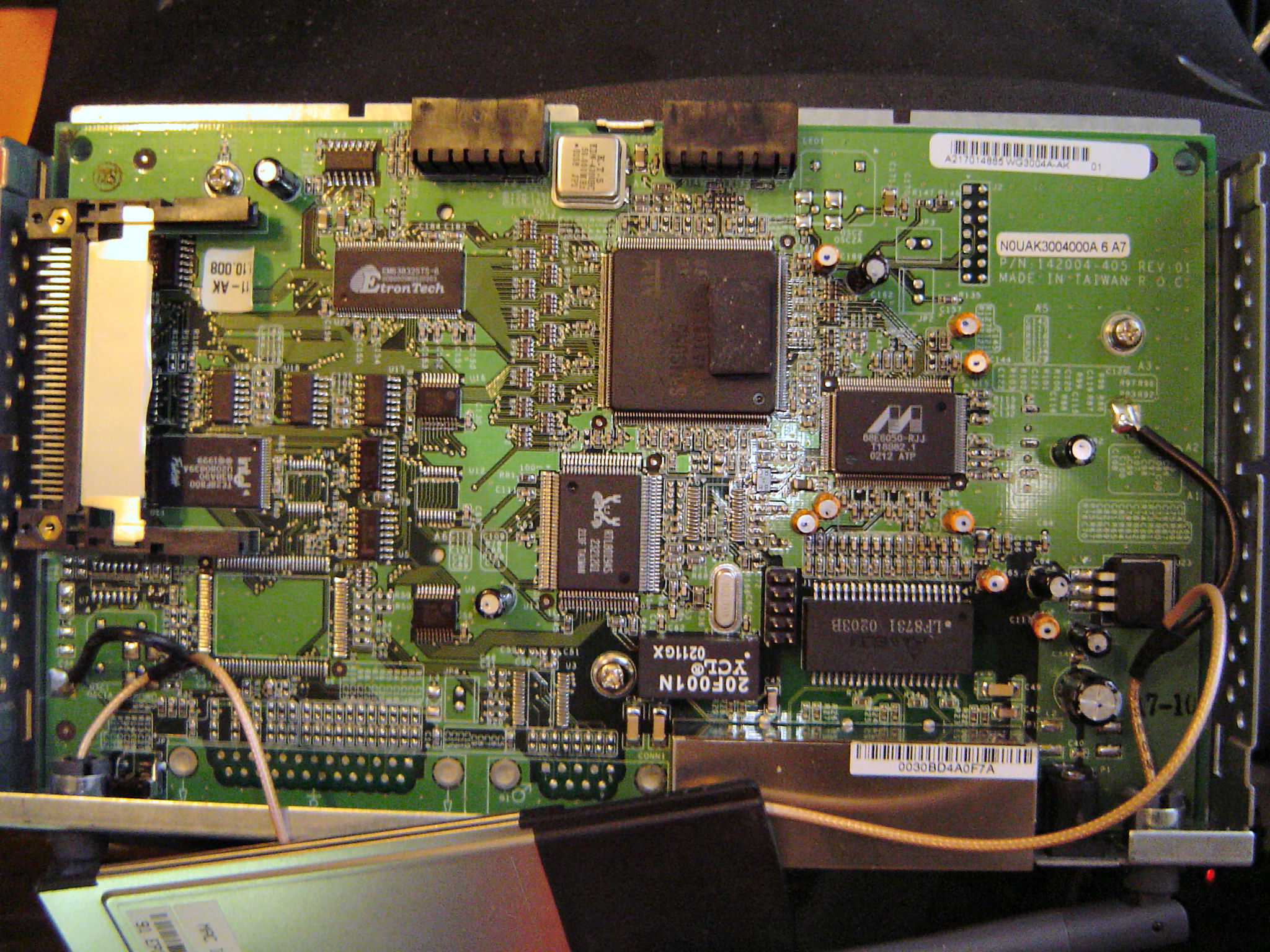

EDIT:  Here's images of it, but they didn't come out very good.  Probably because I was trying to block the flash again to keep it from blinding them, since my camera won't let me turn flash off without doing slow exposure.  Click for larger.






EDIT2:

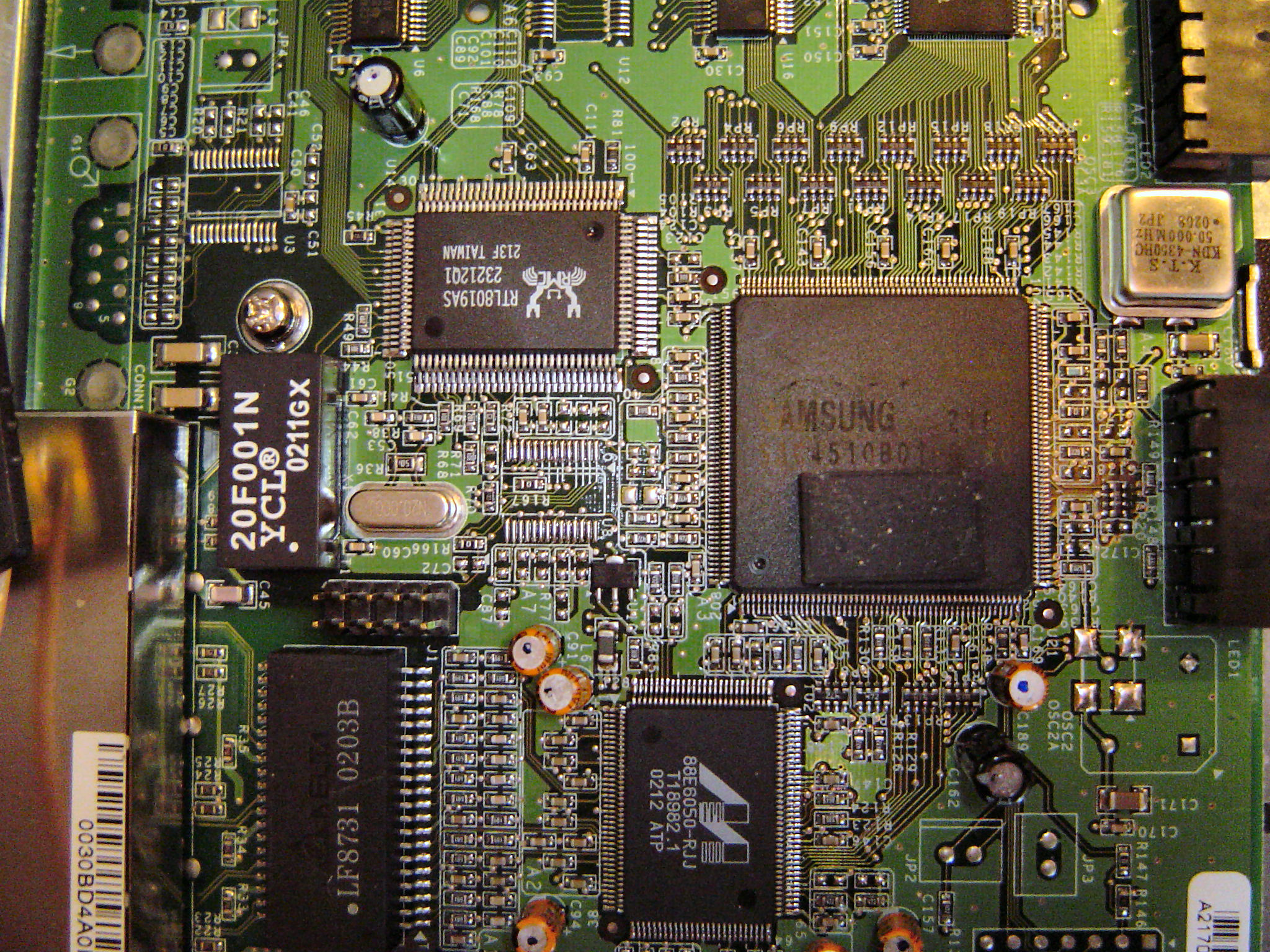

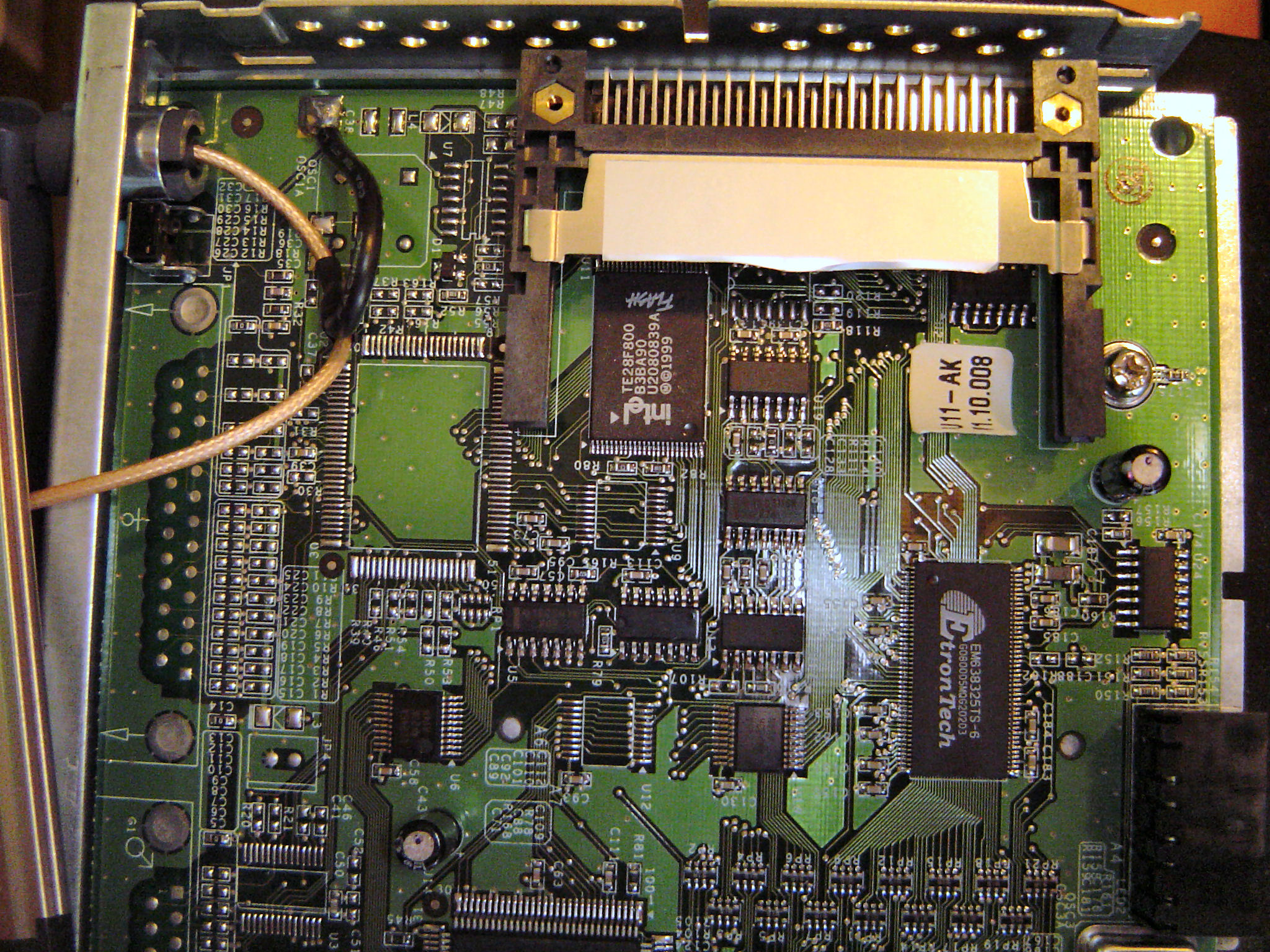

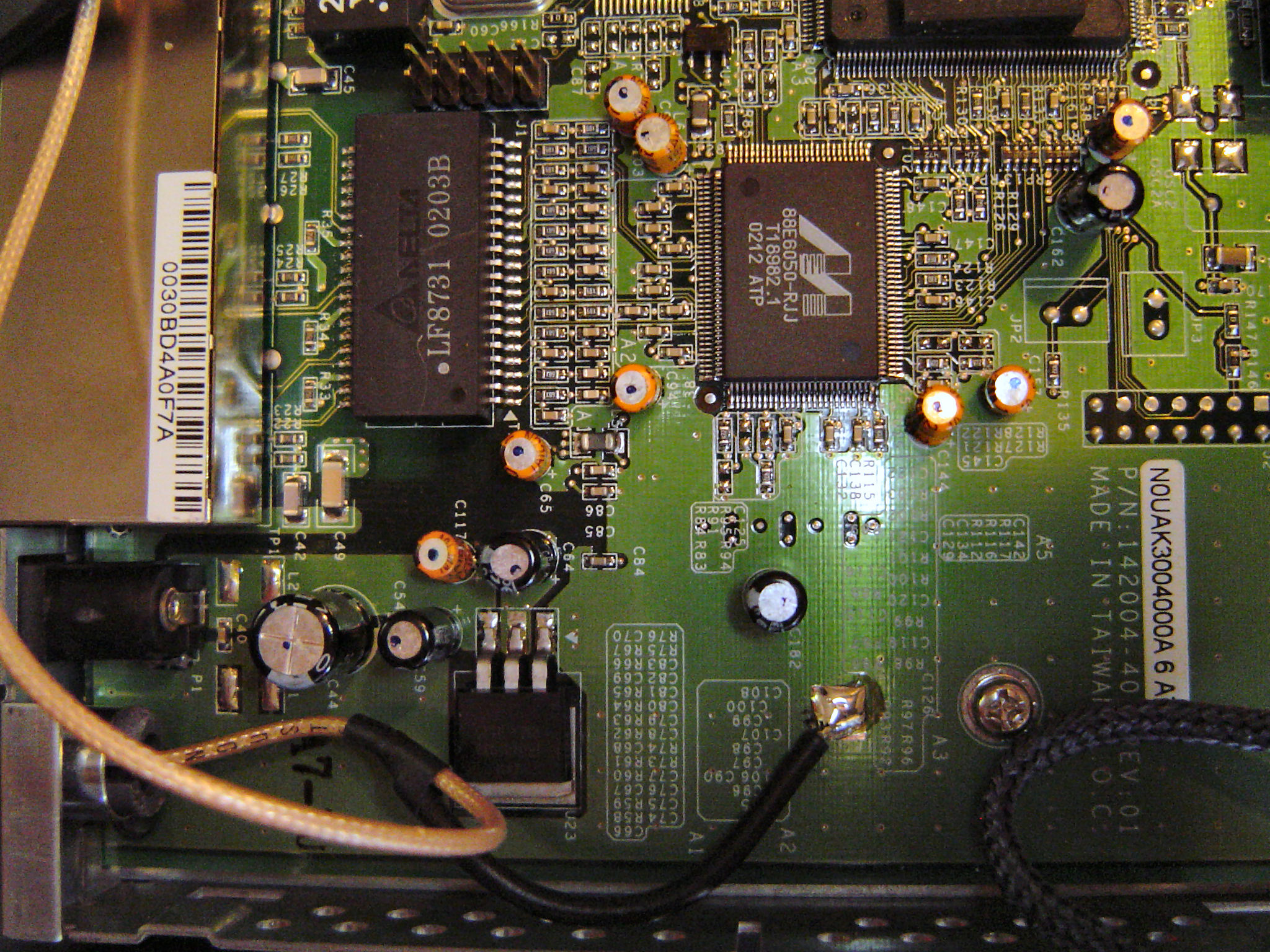

Here's some better close-ups.  You can actually read the components on these:

http://www.fybertech.net/images/belkin/belkin_F5D6230-3_close1.jpg
http://www.fybertech.net/images/belkin/belkin_F5D6230-3_close2.jpg
http://www.fybertech.net/images/belkin/belkin_F5D6230-3_close3.jpg
« Last Edit: September 29, 2007, 03:19:35 PM by FyberOptic » Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #4 on: October 02, 2007, 01:37:47 AM »

I totally extracted the VxWorks kernel + whatever else was with it from the firmware image.  I had a Perl script which worked very much like the CRC search one, incrementing the starting position in the firmware image and attempting to decompress from there, repeating this over and over.  But for the longest time I had no luck, but that was due to me using zlib's "inflate" function, when I really needed to be using "uncompress".  The latter is more of a raw method, where as the former had some extra header bytes and stuff to identify what it was more.

But yeah, I extracted it and started disassembling the kernel.  There's lots of strings and text and such in it, including all the HTML pages for the web interface.  Though I dunno if a lot of this is hard-compiled right in with the kernel, or if there's some form of filesystem in play.  But maybe poking around in this firmware will help figure out some stuff about the hardware.

Next I want to make a JTAG interface to my parallel port in order to download the memory contents, to get a better idea of the structure.  Hell, I still don't know where the ROM is located, since the ram is apparently at 0x1000, because that's where the firmware uncompresses to and runs the kernel from.  A JTAG interface would also let me update the flash chip without needing the web interface uploader (in other words, I'd never have to figure that CRC stuff out from the firmware image header).  It also allows for some debugging aspects, but I dunno if I'd ever use those.

Anyway I'd write more about what I found out about making the JTAG cable, but my hand hurts so maybe next time!
Logged
Bluejay
HERO OF FYBERTECH (tm)
Collguy
*
Posts: 1624


Careful, or the mice will rise up.


WWW
« Reply #5 on: October 03, 2007, 06:47:57 AM »

Fyber, I must say, all that stuff you typed... I didn't get a word of it, but hey, you sound really smart typing it, so yay!
Logged

One day, when the zombies rise and destroy humanity; I will survive, I will live on, I will take your best stuff for myself.
Altzan
Website Designer
Sr. Member
****
Posts: 357



WWW
« Reply #6 on: October 03, 2007, 01:51:03 PM »

Fyber, I must say, all that stuff you typed... I didn't get a word of it, but hey, you sound really smart typing it, so yay!

Ditto.
Logged

TORTQUATO TASSO is the best name ever.


RANDOM WEBSITE
SEE MY POKEMANS CARD
kingwinkie
Newbie
*
Posts: 1


« Reply #7 on: October 03, 2007, 05:42:50 PM »

I have one of these. One of my clients was throwing it out a couple of years ago. I grabbed it and have been using it when ever i wanted/needed a easy ap point Smiley.

While it does have a crappy interface but it worked for me the odd time i needed/wanted to use wireless...

If you someone to try something out let me know Smiley



Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #8 on: October 04, 2007, 07:18:00 PM »

That's cool, I was starting to think I was about the only person out there interested in messing with the thing!  I'd have to figure out the firmware header format in order for you to be able to dump new code on there easy, unless you know anything about electronics to make something like a JTAG interface.

I figure that's what I'll work on next, and since it's a 3.3v board vs the parallel port's 5v, I'll have to use a particular buffer IC as a go-between, once I find one around here.
Logged
mly
Newbie
*
Posts: 1


« Reply #9 on: October 08, 2007, 11:41:10 AM »

Hi,


Here's some of the components from the Belkin that I've looked up:

...

91.EP213.002 217CP10746 - Unknown brand PCMCIA wifi card (802.11B) with dual-antennas hard-wired



The card seems to be AWLAN WS8P/IEEE.
I just take it out from my F5D 6230-3 and insert into the laptop.

On another note, I am playing with an idea to build netbsd install for this hardware.
I have some experience with *BSD clone, however I have no idea how
to load the build into the flash memory. Regards, ML
Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #10 on: October 08, 2007, 02:46:52 PM »

Hi,

The card seems to be AWLAN WS8P/IEEE.
I just take it out from my F5D 6230-3 and insert into the laptop.

On another note, I am playing with an idea to build netbsd install for this hardware.
I have some experience with *BSD clone, however I have no idea how
to load the build into the flash memory. Regards, ML

Oh cool, I had been meaning to see what my laptop would show the card as.  But being soldered into the router, it would have taken some juggling, so I never got around to it.  I took apart a Siemens router once though, and I believe it was a very similar if not the same card in it.  That card had a little antenna jack on it though.  But it worked pretty well for general wifi use.

I don't know hardly anything about BSD to be honest.  But from what I've read before, the ARM ports aren't very far along.  Do you think it would even support ARM7TDMI-type architecture?
Logged
blunderbuzzard
Newbie
*
Posts: 1


« Reply #11 on: March 04, 2008, 02:46:11 AM »

so has anything come of this? I have one of these too, and I'm contemplating using a vxworkskiller, and then attempting a tftp...
Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #12 on: March 08, 2008, 07:53:12 PM »

I didn't have the parts I needed to make the buffer for the JTAG cable, so I pretty much never worked on it any farther.  I don't believe any vxworkskiller type of things will work on this one, mind you, hence me initially trying to make the cable.

Besides, the 1MB of flash isn't going to get OpenWRT or any of those operating systems installed.  My initial goal was to somehow put my own stripped down version on there, but the kernel alone was going to take over half the storage space I think, which doesn't really give you any space for doing anything useful.  Busybox would have also been necessary for most of the basic linux functions, and that would have eaten up another big chunk of storage, probably more than would be left after the kernel took its spot.  There's just not enough, that's why they went with vxworks.  Disappointing, I know.
Logged
FyberOptic
King of Earth
Administrator
*****
Posts: 2521


Oh god what is that?


WWW
« Reply #13 on: March 11, 2009, 02:44:04 PM »

What incredible irony that in my search for the BEFW11S4, an older Linksys router which I've just come in possession of, I find my own page on Google.  And then I realize that the parts I'm looking for are in fact the same as this old Belkin one here that I gave up on.  The difference though is that this Linksys has 8MB of flash and 16mb of ram.  Plenty for running a Linux installation.

Of course, making one work on it is an entirely different story!

One big difference here though is the wifi.  The Linksys has Intersil ISL3871AIN33.  But something amazingly coincidental is the design of the circuit board in that area.  It looks as if they printed a PCMCIA card directly onto the board.  It's a rectangular bordered shape, even with a bunch of tiny eyelets at one end, reminding me of the pins of a PC card.  I'm wondering if it could be identical to the one in the Belkin which I couldn't identify.

I'm almost tempted to put the Belkin firmware on the Linksys just to see what happens.
Logged
Bluejay
HERO OF FYBERTECH (tm)
Collguy
*
Posts: 1624


Careful, or the mice will rise up.


WWW
« Reply #14 on: March 12, 2009, 10:33:25 AM »

If you busk the Linksys I can send you another Mr. Fyber, so go ahead and dorkery with it.
